Rotary Evaporator RE-100D



Rotary Evaporator RE-100D

Huge, easy-to-read LCD display, indicates temperature, speed and time

  • Speed range from 20 to 280 rpm

  • Large 5 l water/oil heating bath with heating temperature range of RT to 180 °C

  • Heating bath with precise temperature control and adjustable safety circuit

  • Patented condenser cooling surface 1,500 cm2 with excellent cooling effect

  • Motorized lift with quick-action, automatic release evaporating flask to top position in case of power failure

  • Adjustable final position recognition to protect operator and sample against breakage

  • Evaporating flask with an ejector, convenient to remove

  • Available with timer function to precise control processing

  • Interval operation left/right

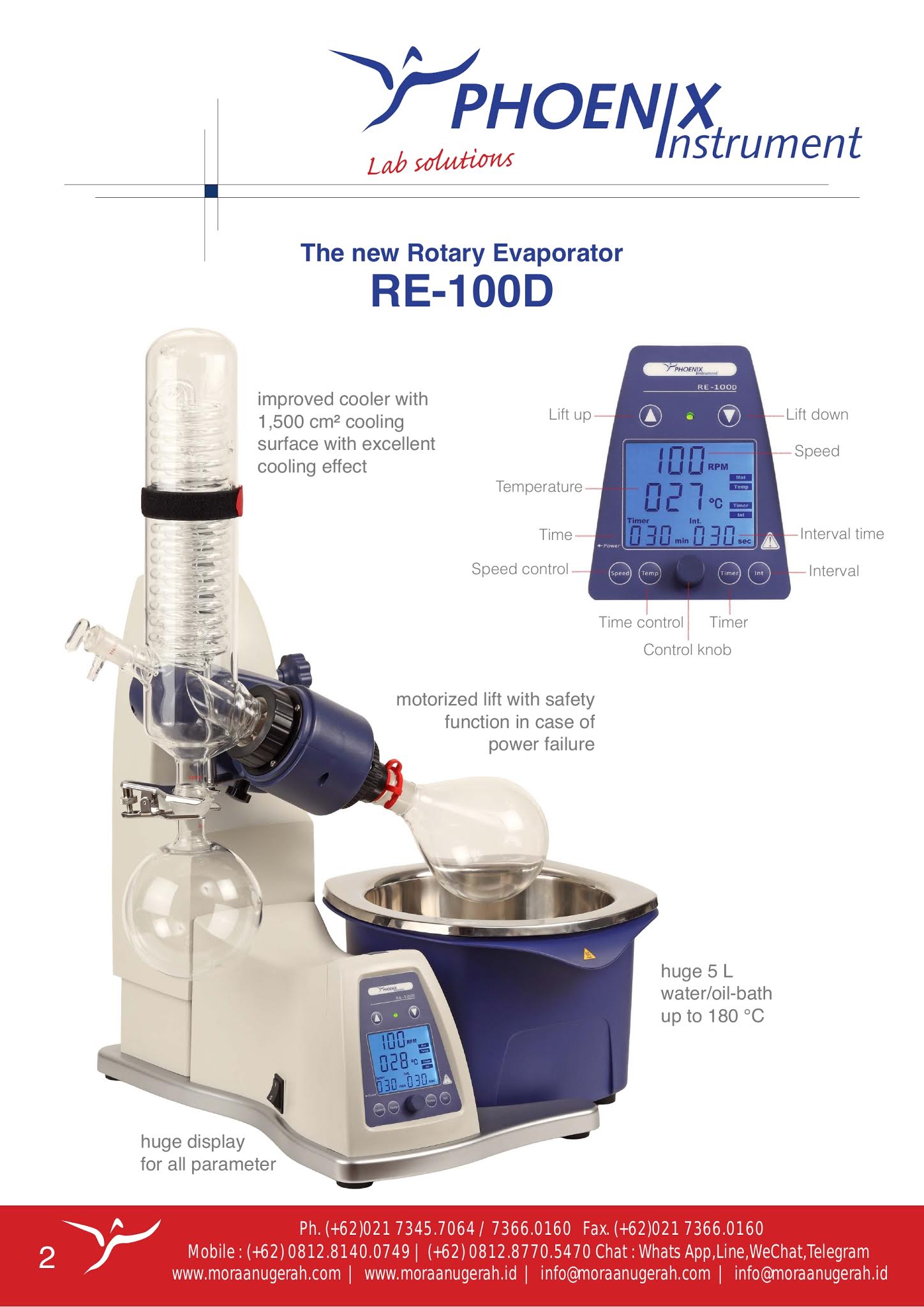

  • Click Here : Phoenix Instrument – Rotary Evaporator RE-100D Brochure

  • Click Here : MATEST [B065] Rotary Evaporator Apparatus Brochure



Rotary Evaporator RE-100D



Technical Data

RE-100D

Voltage • Frequency

100-240 V • 50/60 Hz

Power

1,400 W

Motor

Brushless DC

Speed

20 – 280 Rpm

Speed Display

LCD

Temperature

RT to 180 °C

Accuracy Heating

± 1 °C

Heating Power

1,300 W

Temperature Display

LCD

Lift

Motor

Stroke

150 mm

Timer Control

Yes

Time Display

LCD

Operation Time

1-999 min

Dimension

600 x 450 x 820 mm

Weight

19 kg

Ambient Temperature

5 – 40 °C

Relative Humidiy

80 %

Protection Class

IP20

Rotary Evaporator RE-100D

Additional Accessoires for RE-100D

RE-S 100

Vapor Tube

RE-S 110

Seal

RE-S 200

Vertical glass set

RE-S 250

Vertical glass set, coated

RE-S 300

Evaporation flask 500 ml, NS29/32

RE-S 310

Evaporation flask 1000 ml, NS29/32

RE-S 320

Evaporation flask 2000 ml, NS29/32

RE-S 350

Evaporation flask 500 ml, NS29/32, coated

RE-S 360

Evaporation flask 1000 ml, NS29/32, coated

RE-S 370

Evaporation flask 2000 ml, NS29/32, coated

RE-S 400

Receiving flask 500 ml, KS35/20

RE-S 410

Receiving flask 1000 ml, KS35/20

RE-S 420

Receiving flask 2000 ml, KS35/20

RE-S 450

Receiving flask 500 ml, KS35/20, coated

RE-S 460

Receiving flask 1000 ml, KS35/20, coated

RE-S 470

Receiving flask 2000 ml, KS35/20, coated

RE-S 600

Foam brake

RE-S 650

Distilling spider with 5 flasks (100 ml)
