The Latest in GNSS Technology

The Sokkia GCX3 is a dual-frequency GNSS receiver that delivers RTK centimeter-level performance. It delivers high-quality results for surveying and construction applications, and is versatile enough to be used in a wide-variety of other areas and industries as well.

Small But Mighty

The GCX3 is an ultra-lightweight, compact solution that minimizes heft on the range pole. You get maximum mobility and ease of use in the field. But do not let the size fool you  the GCX3 antenna performance in obstructed canopy environments outperforms other traditional antenna technology.

Advanced Technologies

Built with leading-edge technology, the GCX3 brings you the best in GNSS RTK and static data collection. The POST2™ integrated antenna delivers first-class performance. Adding BeiDou, Galileo, SBAS, QZSS, and GAGAN satellite tracking in addition to GPS and GLONASS ensures the best positioning availability.

Ultimate Versatility

The GCX3 interface is based on an open source architecture. This means you are not limited to a specific software for your field controller. While the GCX3 standard system includes suggested software, it is open to fit your workflow.

Work Your Way

Providing flexibility in a variety of ways for static or RTK data collection, the GCX3 easily adapts to nearly any application. A pair of GCX3 receivers can be used as a base and rover using wireless multi-channel long-range Bluetooth® technology RTK corrections. When combined with a cellular-enabled field controller, the GCX3 also performs as an ideal precision network RTK rover.

Clear Communication

With its wireless multi-channel longrange Bluetooth® technology RTK corrections, the GCX3 eliminates licensing or interference issues. When used as a base, it may support three concurrent GCX3 rovers at a range of up to 300 meters.

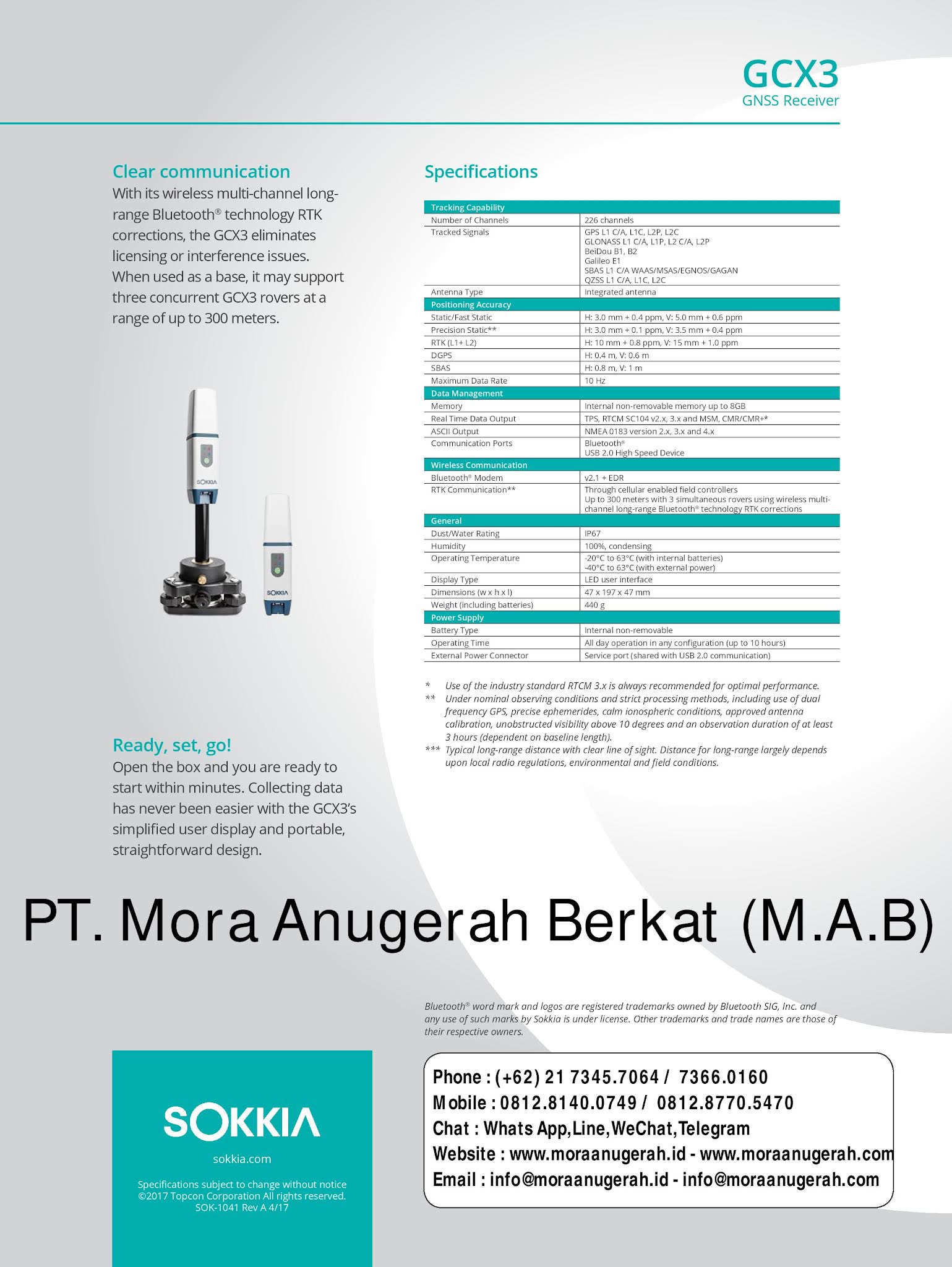

SOKKIA GCX3 GNSS Receiver

Specification

Tracking Capability

Number of Channels

226 channels

Tracked Signals

GPS L1 C/A, L1C, L2P, L2C

GLONASS L1 C/A, L1P, L2 C/A, L2P

BeiDou B1, B2

Galileo E1

SBAS L1 C/A WAAS/MSAS/EGNOS/GAGAN

QZSS L1 C/A, L1C, L2C

Antenna Type

Integrated antenna

Positioning Accuracy

Static/Fast Static

H: 3.0 mm + 0.4 ppm, V: 5.0 mm + 0.6 ppm

Precision Static**

H: 3.0 mm + 0.1 ppm, V: 3.5 mm + 0.4 ppm

RTK (L1+ L2)

H: 10 mm + 0.8 ppm, V: 15 mm + 1.0 ppm

DGPS

H: 0.4 m, V: 0.6 m

SBAS

H: 0.8 m, V: 1 m

Maximum Data Rate

10 Hz

Data Management

Memory

Internal non-removable memory up to 8GB

Real Time Data Output

TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+*

ACII Output

NMEA 0183 version 2.x, 3.x and 4.x

Communication Ports

Bluetooth®
USB 2.0 High Speed Device

Wireless Communication

Bluetooth® Modem

v2.1 + EDR

RTK Communication**

Through cellular enabled field controllers
Up to 300 meters with 3 simultaneous rovers using
wireless multichannel long-range Bluetooth®
technology RTK corrections

General

Dust/Water Rating

IP67

Humidity

100%, condensing

Operating Temperature

-20°C to 63°C (with internal batteries)
-40°C to 63°C (with external power)

Display Type

LED user interface

Dimensions (w x h x l)

47 x 197 x 47 mm

Weight (including batteries)

440 g

Power Supply

Battery Type

Internal non-removable

Operating Time

All day operation in any configuration (up to 10 hours)

External Power Connector

Service port (shared with USB 2.0 communication)
