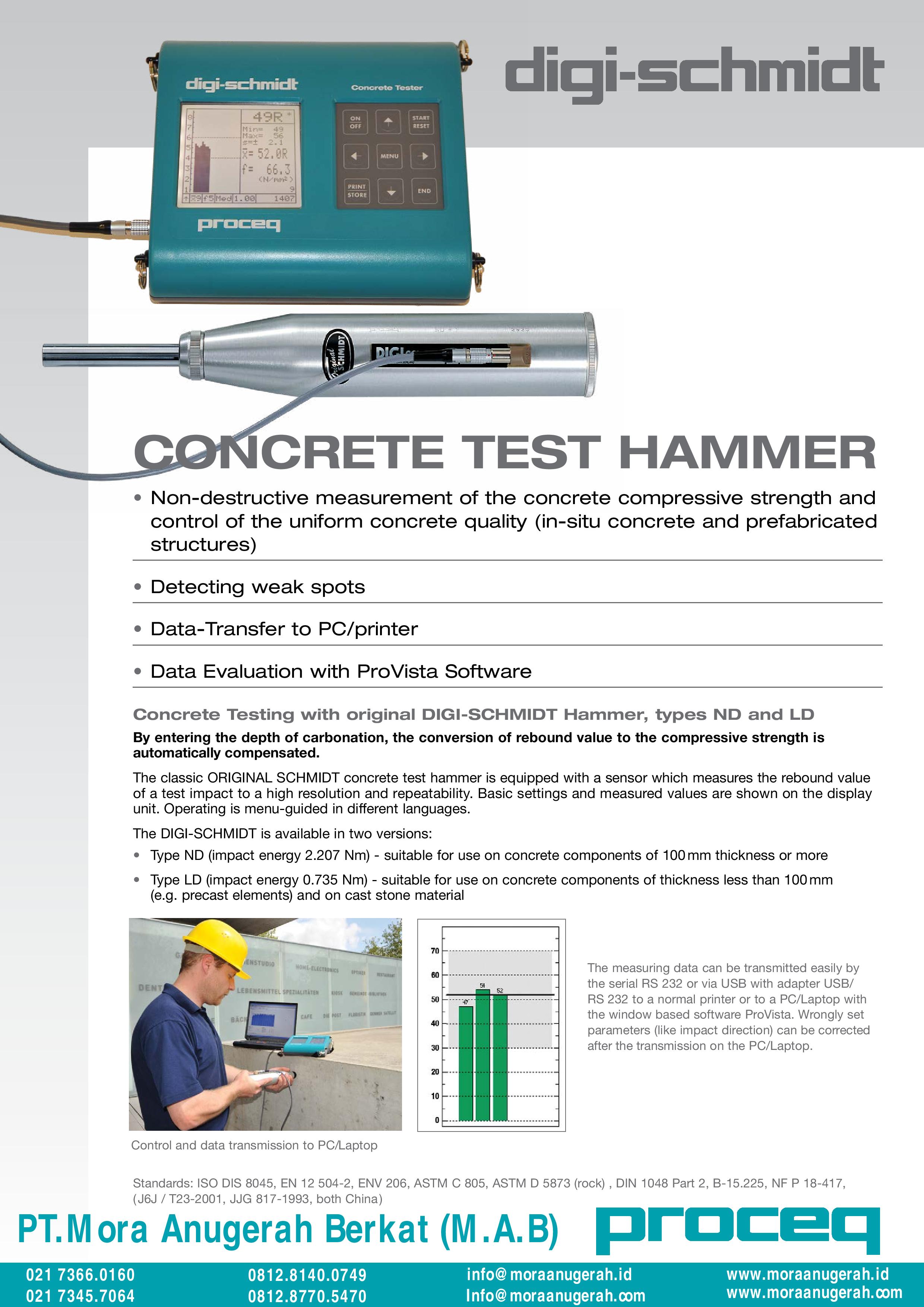

PROCEQ CONCRETE TEST HAMMER



  • Non-destructive measurement of the concrete compressive strength and control of the uniform concrete quality (in-situ concrete and prefabricated structures)
  • Detecting weak spots
  • Data-Transfer to PC/printer
  • Data Evaluation with ProVista Software

 Concrete Testing with original DIGI-SCHMIDT Hammer, types ND and LD

By entering the depth of carbonation, the conversion of rebound value to the compressive strength is automatically compensated.

 The classic ORIGINAL SCHMIDT concrete test hammer is equipped with a sensor which measures the rebound value of a test impact to a high resolution and repeatability. Basic settings and measured values are shown on the display

unit. Operating is menu-guided in different languages.

 The DIGI-SCHMIDT is available in two versions:

  •       Type ND (impact energy 2.207 Nm) – suitable for use on concrete components of 100 mm thickness or more
  •       Type LD (impact energy 0.735 Nm) – suitable for use on concrete components of thickness less than 100 mm (e.g. precast elements) and on cast stone material

Standards:

ISO DIS 8045, EN 12 504-2, ENV 206, ASTM C 805, ASTM D 5873 (rock) , DIN 1048 Part 2, B-15.225, NF P 18-417,( J6J / T23-2001, JJG 817-1993, both China )

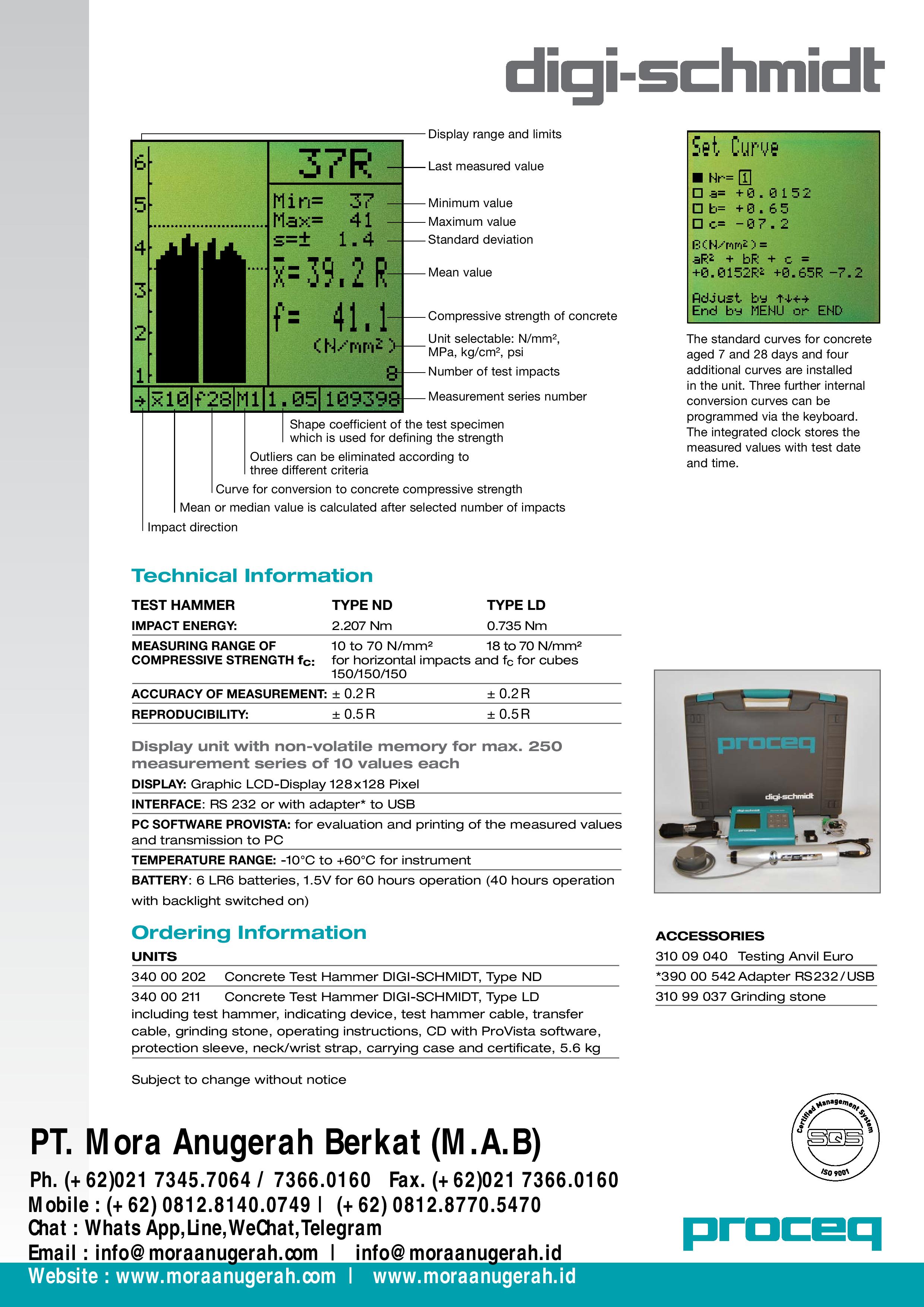

Technical Information

TEST HAMMER TYPE ND TYPE LD
IMPACT ENERGY 2.207 Nm 0.735 Nm
MEASURING RANGE OF COMPRESSIVE STRENGTH fc 10 to 70 N/mm²
for horizontal impacts 150/150/150		 18 to 70 N/mm²
fc for cubes
ACCURACY OF MEASUREMENT ± 0.2 R ± 0.2 R
REPRODUCIBILITY ± 0.5 R ± 0.5 R



Display unit with non-volatile memory for max. 250 measurement series of 10 values each

DISPLAY : Graphic LCD-Display 128 x 128 Pixel

INTERFACE   : RS 232 or with adapter* to USB

PC SOFTWARE PROVISTA   : for evaluation and printing of the measured values and transmission to PC

TEMPERATURE RANGE  : -10°C to +60°C for instrument

BATTERY : 6 LR6 batteries, 1.5V for 60 hours operation (40 hours operation with backlight switched on)

Ordering Information

UNITS
340 00 202 Concrete Test Hammer DIGI-SCHMIDT, Type ND
340 00 211
 Concrete Test Hammer DIGI-SCHMIDT, Type LD
including test hammer, indicating device, test hammer cable, transfer
cable, grinding stone, operating instructions, CD with ProVista software,
protection sleeve, neck/wrist strap, carrying case and certificate, 5.6 kg
ACCESSORIES
310 09 040 Testing Anvil Euro
*390 00 542 Adapter RS 232 / USB
310 99 037 Grinding stone
