Nikon Theodolite Price

Jika anda membutuhkan Alat-alat survey seperti GPS,Laser Distance,Water Level,Total Station dan Theodolite dengan berbagai merek seperti : TOPCON,SOKKIA,NIKON,RUIDE dan lain-lain

Nikon Theodolite Price

Key Features

– 5” angle accuracies , Compensator on NE-103

– Large display and keyboard

– Alkaline (standard AA) batteries with battery life indicator

– IPX6 waterproofing

– Illuminated display and telescope

– Superior Nikon optics

NIKON Theodolite Brochure

Spesifikasi Theodolite	NE-102	NE-103
Angle Measurement
Reading System	Photoelectric Incremental Encoder	Photoelectric Incremental Encoder
Circle Diameter	79 mm (3.1 in)	79 mm (3.1 in)
Unit Of Reading	degree/gon/mill	degree/gon/mill
Minimum Digital Reading	5/10″, 1/2 mgon, 0.02/0.05 mil	5/10″, 1/2 mgon, 0.02/0.05 mil
Accuracy (DIN 18723)	5″/1 mgon	5″/1 mgon
Telescope
Effective Diameter Of Objective	45 mm (1.8 in)	45 mm (1.8 in)
Magnification	30x	30x
Image	erect	erect
Field Of View (at 100m/100Ft)	1°20′ (2.3 m/2.3 ft)	1°20′ (2.3 m/2.3 ft)
Minimum Focusing Distance	0.7 m (2.3 ft)	0.7 m (2.3 ft)
Stadia Multiplier Constant	100	100
Stadia Additive Constant	0	0
Reticle Illuminator	Yes	Yes
Automatic Vertical Compensator
Type	==	liquid-electric detection
Working Range	==	± 3′ (out of range warning provided)
Display / Keypad
Front
Type	dot-matrix LCD (20 Characters x 2 lines)	dot-matrix LCD (20 Characters x 2 lines)
Backlight	1-level illumination	1-level illumination
Keypad	5 buttons	5 buttons
Rear
Type	dot-matrix LCD (20 Characters x 2 lines)	dot-matrix LCD (20 Characters x 2 lines)
Backlight	1-level illumination	1-level illumination
Keypad	5 buttons	5 buttons
Optical Plummet
Magnification	3x	3x
Field Of View	5°	5°
Focus Range	0.5m (1.6ft) to infinity	0.5m (1.6ft) to infinity
Level Sensitivity
Plate Level	60″/2 mm	40″/2 mm
Circular Level	10’/2 mm	10’/2 mm
Leveling Base
Type	detechable	detechable
Ambient Temperature Range	– 20 to 50C (-4 to 122 F)	– 20 to 50C (-4 to 122 F)
Enviromental Rating	IP56	IP56
Dimensions
Instrument	153.5 x 172 x 334 mm (6.0×6.8×13.1) In	153.5 x 172 x 334 mm (6.0×6.8×13.1) In
Weight
Instrument	4.5 Kg (9.8 lb)	4.6 Kg (10.1 lb)
Carrying Case	3.9 Kg (8.6 lb)	2.5 Kg (5.4 lb)
Power Supply
Battery Type	1.5V AA x 6	1.5V AA x 6
Continuous Operating Time (at 68°F/20°C	48 hours	48 hours

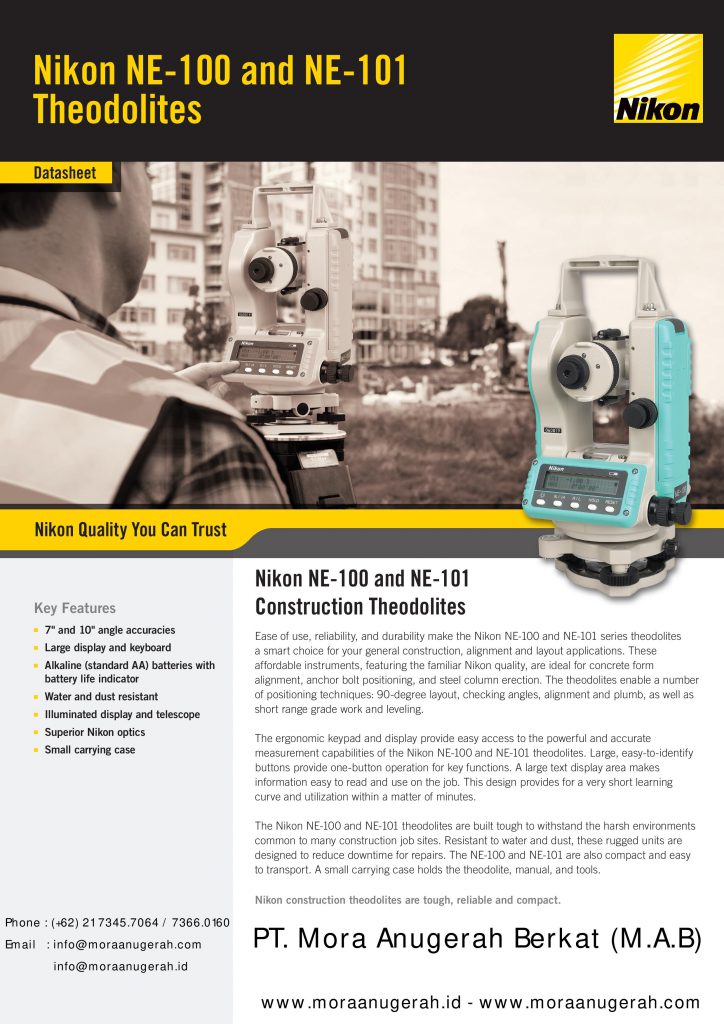

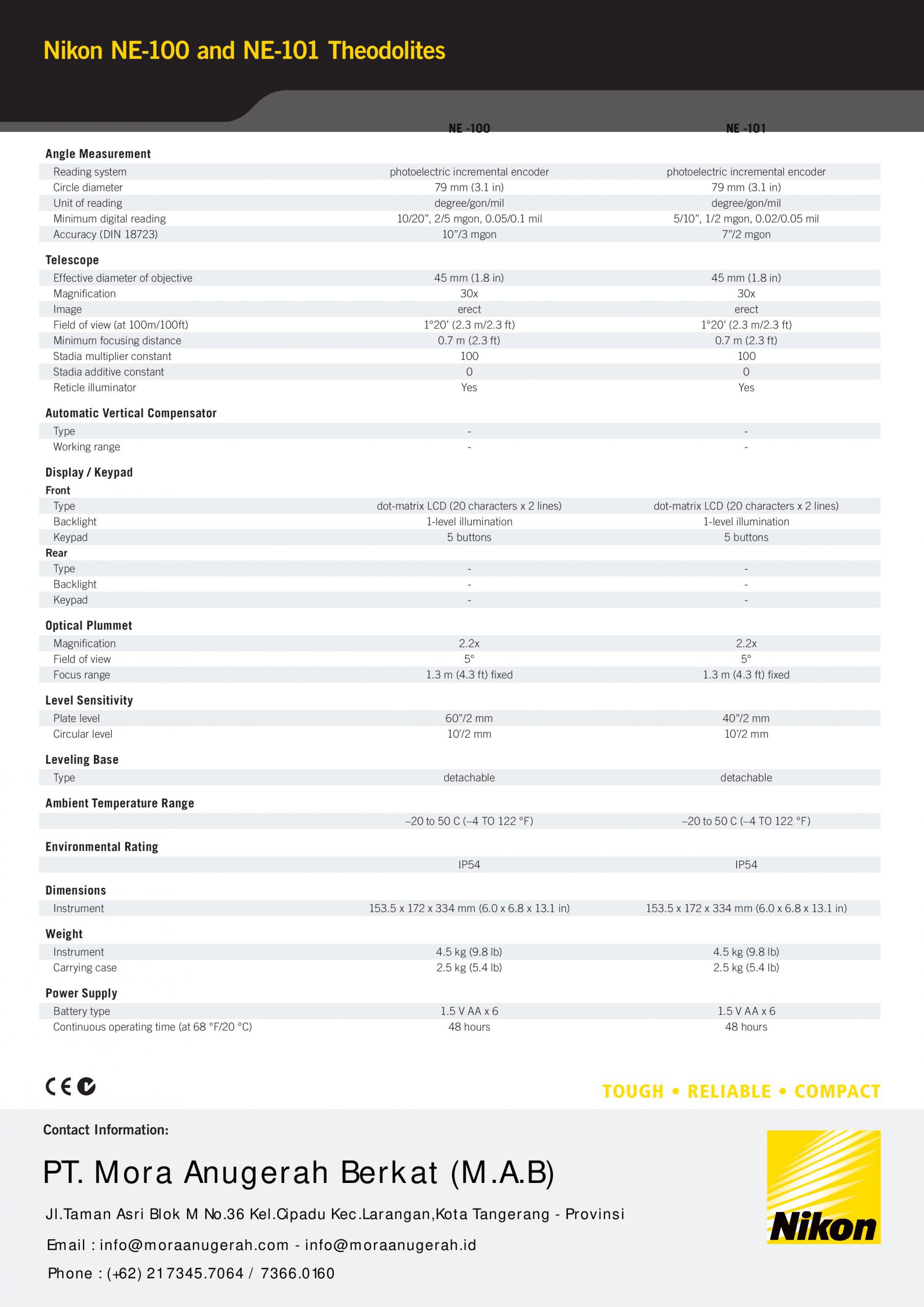

NIKON Theodolite Brochure

Spesifikasi Theodolite	NE-100	NE-101
Angle Measurement
Reading System	Photoelectric Incremental Encoder	Photoelectric Incremental Encoder
Circle Diameter	79 mm (3.1 in)	79 mm (3.1 in)
Unit Of Reading	degree/gon/mill	degree/gon/mill
Minimum Digital Reading	10/20″, 2/5 mgon, 0.05/0.1 mil	10/20″, 2/5 mgon, 0.05/0.1 mil
Accuracy (DIN 18723)	10″/3 mgon	7″/2 mgon
Telescope
Effective Diameter Of Objective	45 mm (1.8 in)	45 mm (1.8 in)
Magnification	30x	30x
Image	erect	erect
Field Of View (at 100m/100Ft)	1°20′ (2.3 m/2.3 ft)	1°20′ (2.3 m/2.3 ft)
Minimum Focusing Distance	0.7 m (2.3 ft)	0.7 m (2.3 ft)
Stadia Multiplier Constant	100	100
Stadia Additive Constant	0	0
Reticle Illuminator	Yes	Yes
Automatic Vertical Compensator
Type	==	==
Working Range	==	==
Display / Keypad
Front
Type	dot-matrix LCD (20 Characters x 2 lines)	dot-matrix LCD (20 Characters x 2 lines)
Backlight	1-level illumination	1-level illumination
Keypad	5 buttons	5 buttons
Rear
Type	==	==
Backlight	==	==
Keypad	==	==
Optical Plummet
Magnification	3x	3x
Field Of View	5°	5°
Focus Range	0.5m (1.6ft) to infinity	0.5m (1.6ft) to infinity
Level Sensitivity
Plate Level	60″/2 mm	40″/2 mm
Circular Level	10’/2 mm	10’/2 mm
Leveling Base
Type	detechable	detechable
Ambient Temperature Range	– 20 to 50C (-4 to 122 F)	– 20 to 50C (-4 to 122 F)
Enviromental Rating	IP56	IP56
Dimensions
Instrument	153.5 x 172 x 334 mm (6.0×6.8×13.1)	153.5 x 172 x 334 mm (6.0×6.8×13.1)
Weight
Instrument	4.5 Kg (9.8 lb)	4.5 Kg (9.8 lb)
Carrying Case	3.9 Kg (8.6 lb)	3.9 Kg (8.6 lb)
Power Supply
Battery Type	1.5V AA x 6	1.5V AA x 6
Continuous Operating Time (at 68°F / 20°C)	48 hours	48 hours
