Nippon Instruments Corporation
|

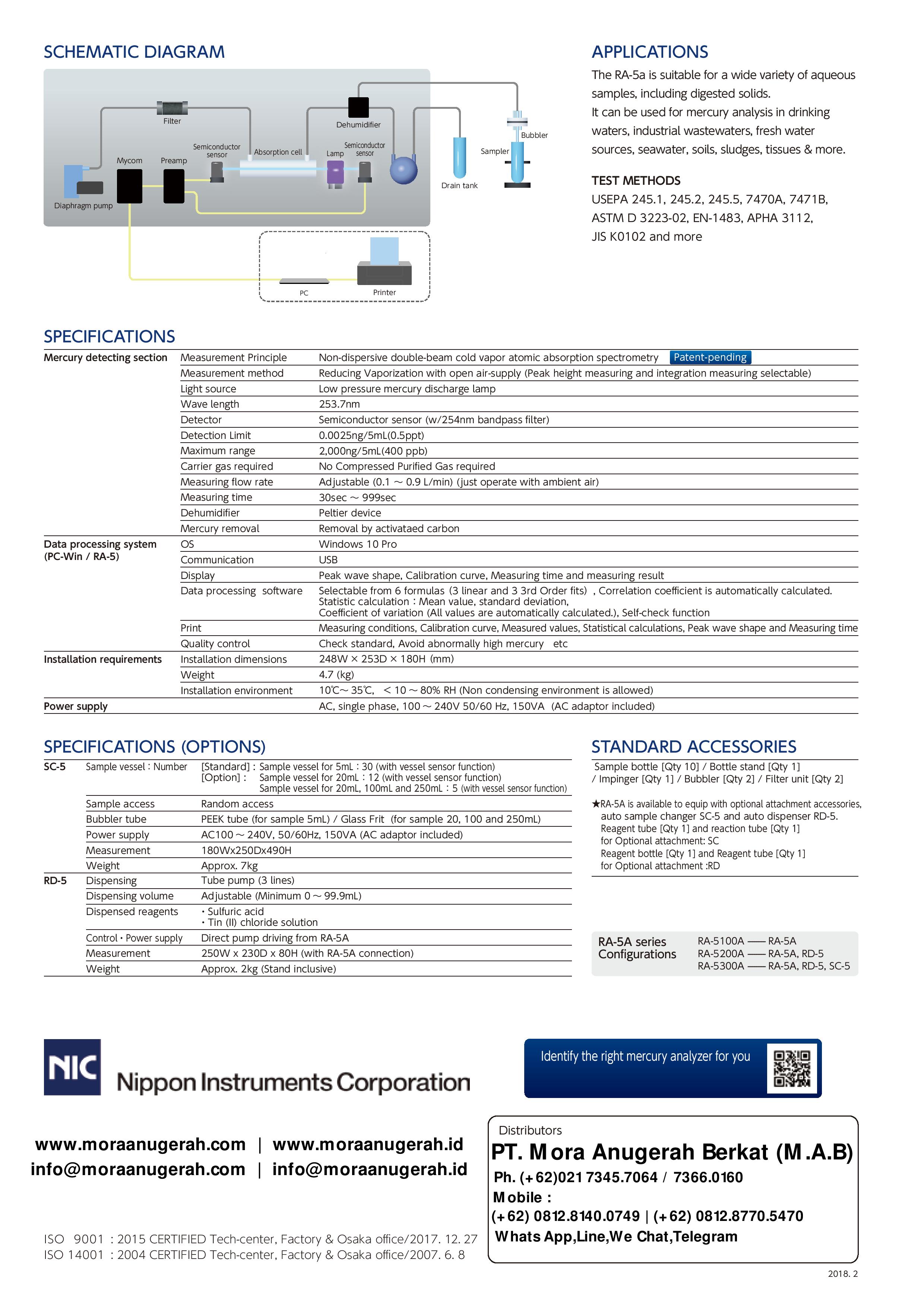

Specifications
|
Mercury Analyzer RA – 5A
|
Data
Processing
Software
|
Measurement
Principle
|
Non-dispersive double beam cold vaporatomatic absorption
spectrometry [Patent Pending]
|
Measurement
Method
|
Reducing Vaporrization with open air-supply
(Peak height measuring and integration measuring salectable)
|
Light
Source
|
Low pressure mercury discharge lamp
|
Wave
Length
|
253.7 nm
|
Detector
|
semicondutor sensor (w/254nm bandpass filter)
|
Detection
Limit
|
0,0025ng/5ml (0.5ppt)
|
Maximum
Range
|
2.000ng/5ml (400 ppb)
|
Carrier Gas
Required
|
No0 Compressed purified gas Required
|
Measure
Flow Rate
|
Adjustable (0.1 – 0.9 L/min) (just operet with ambient air)
|
Measuring
Time
|
30sec – 999sec
|
Dehumidifier
|
Peltier device
|
Mercury
Removal
|
Removal by activated carbon
|
Mercury
Detection
Section
|
OS
|
Windows 10 Pro
|
Comunication
|
USB
|
Display
|
Peak Wave shape,calibration curve,measuring time and measuring result
|
Data
|
Selectable from 6 formula (3 liniear and 3rd order fits), Correlation
|
Processing
|
coefficient is automatically calculated Static calculation : Mean Value,
standard deviation Coefficient of variation
|
Software
|
(All value are automatically calculated), self check function
|
Print
|
Measuring conditions,Calibration Curve,Measured values,Statical
Calculations Peak wave shape and Measuring time
|
Quality
Control
|
Check Standard, Avoid abnormally high mercury
|
Instalation
Dimension
|
248W x 253D x 180H (mm)
|
Weight
|
4,7 (Kg)
|
Instalation
Enviroment
|
10°C – 35°C, < 10 – 80% RH (Non condensing enviroment is allowed)
|
Power Supply
|
AC, single phase, 100 – 240V 50/60 Hz, 150VA (AC Adaptor Included)
|
