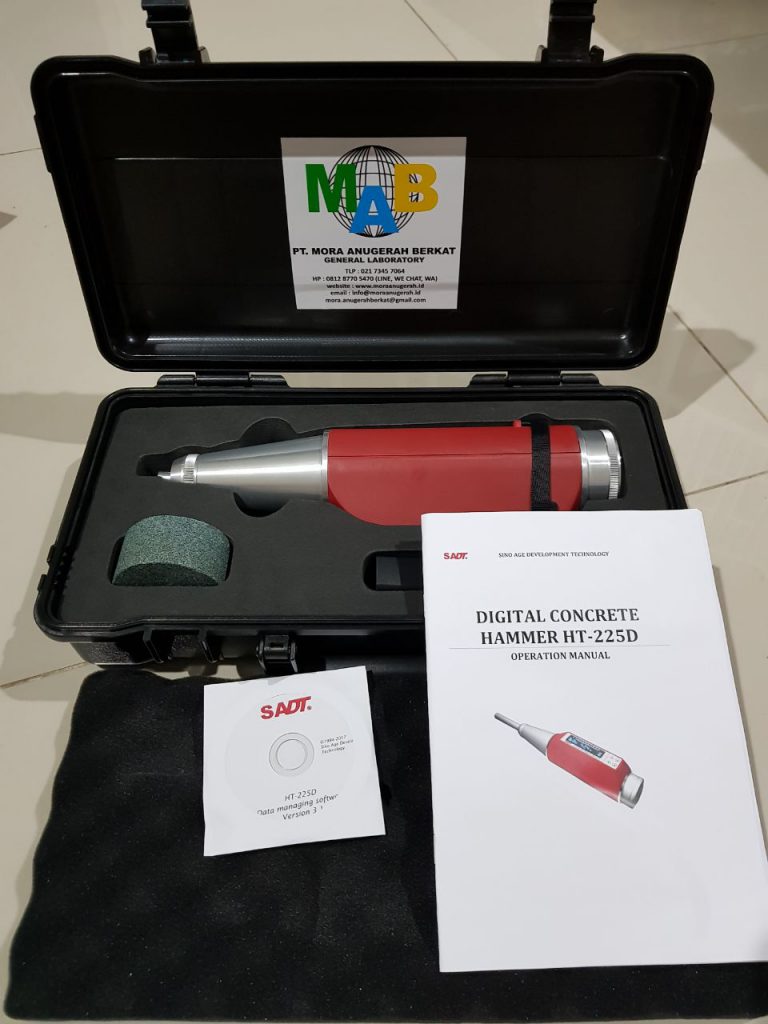

HT-225D Concrete Test Hammer is an integrated digital concrete test hammer which combines data processor and concrete test hammer into one unit. It is widely used for non destructive testing quality of concrete testing and building materials testing in finished concrete structure or prefabricated blocks.
From its rebound value, the compressive strength of concrete can be calculated out automatically.All testing data can be stored in memory and transferred to PC by USB cable or wireless by Bluetooth.
Key Features
-
High contrast OLED display
-
All setup can be made on site
-
Automatic calculating compressive strength
-
Automatic correction of impact direction
-
All data will be stored in memory
-
All data can be transferred to PC by USB cable or bluetooth (optional)
-
Dual display for analogue ruler and digital value.
ACCESSORIES
SPECIFICATION
MODEL
|
HT-225D
|
HT-75D
|
HT-20D
|
DISPLAY
|
OLED
|
MEASURING RANGE
|
10–70 N/mm²
|
1-25 N/mm²
|
IMPACT ENERGY
|
0.225kgm (2.207Nm)
for testing ordinary
building and bridge
construction
|
0.075kgm (0.735Nm)
for testing small and
impact-sensitive
parts of concrete or
artificial brick
|
0.020kgm (0.196Nm)
for testing mortal or
clay of products
|
COMUNICATION
|
USB2.0 or Bluetooth(optional)
|
STORAGE
|
data for 4000 concrete structures
|
OPERATING TEMPERATURE
|
-40°- 60 °C
|
POWER SUPPLY
|
3.7V Li-ion rechargeable battery charged via USB port
|
DIMMENSION (mm)
|
280 x 75 x 60
|
NET WEIGHT
|
1.1 Kg
|
