Navi Station - Total Station with Integrated GNSS
- Fully Integrated GNSS
- Simply Setup the Station Wherever You Want
- Without the Limitation of Known Points
- Up to 2000m Reflectorless EDM
- Cable-free Connection by Bluetooth
- Intelligent Workflow under Android 6.0
- Click Here : GPS Geodetik Survey Katalog
- Click Here : GPS Geodetik Katalog
- Click Here : PT.Mora Anugerah Berkat sudah terdaftar di E-Katalog LKPP

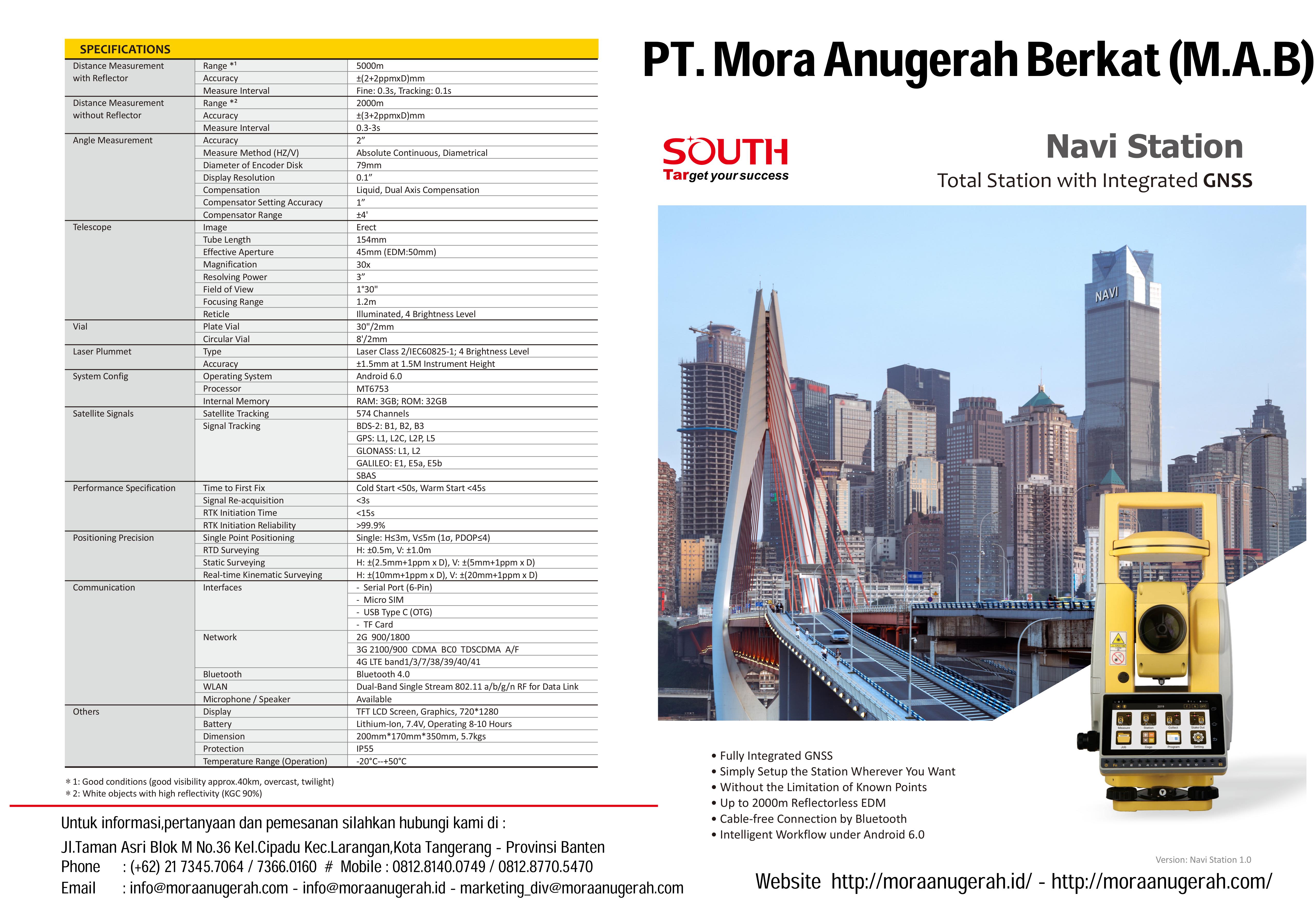

NAVI Station - Total Station
| Navi Station Total Station with Integrated GNSS | |
| Description | |
| Dual Laser EDM | 2000m Non-prism |
| Stronger return signal due to Its dual laser technology | |
| Stable Measurement | Accuracy: 2+2ppm |
| Extremely fast under fine mode | |
| USB OTG, TF Card & Bluetooth | Flexible transfer of data via PC or PDA |
| WLAN & 4G Module | Quick access to Internet |
| 5.0 Inch Color & Touch Screen | Built-in high resolution display |
| Numerical Keypad | Faster and easier input of data |
| Intelligent O.S | Android 6.0 O.S |
| User friendliness | |
| Free SDK package for developer | |
| All Constellations | Enable the satellite tracking from BDS, GPS, GLONASS and Galileo with 574 channels |
| Horizontal : 10+1ppm Vertical : 20+1ppm | |
Features :
- Android O.S, Navi Station provides an intellig solution that integrates GNSS receiver on Total Station.
- Simply setup and determine the position of occupied point by GNSS receiver to centimetre accuracy, among the range of 40 km from reference station.
- Navi Station allows you to work quickly and effectively right from the beginning.
NAVI Station - Total Station
| Navi Station Total Station with Integrated GNSS | ||
| SPECIFICATIONS | ||
| Distance Measurement with Reflector | Range *¹ | 5000m |
| Accuracy | ± (2+2ppmxD) mm | |
| Measure Interval | Fine : 0.3s, Tracking : 0.1s | |
| Distance Measurement without Reflector | Range *² | 2000m |
| Accuracy | ±(3+2ppmxD)mm | |
| Measure Interval | 0.3-3s | |
| Angle Measurement | Accuracy | 2" |
| Measure Method (HZ/V) | Absolute Continuous, Diametrical | |
| Diameter of Encoder Disk | 79mm | |
| Display Resolution | 0.1" | |
| Compensation | Liquid, Dual Axis Compensation | |
| Compensator Setting Accuracy | 1" | |
| Compensator Range | ±4' | |
| Telescope | Image | Erect |
| Tube Length | 154mm | |
| Effective Aperture | 45mm (EDM : 50mm) | |
| Magnification | 30x | |
| Resolving Power | 3" | |
| Field of View | 1°30" | |
| Focusing Range | 1.2m | |
| Reticle | Illuminated, 4 Brightness Level | |
| Vial | Plate Vial | 30"/2mm |
| Circular Vial | 8'/2mm | |
| Laser Plummet | Type | Laser Class 2/IEC60825-1 ; 4 Brightness Level |
| Accuracy | ±1.5mm at 1.5M Instrument Height | |
| System Config | Operating System | Android 6.0 |
| Processor | MT6753 | |
| Internal Memory | RAM: 3GB; ROM: 32GB | |
| Satellite Signals | Satellite Tracking | 574 Channels |
| Signal Tracking | BDS-2: B1, B2, B3 | |
| GPS: L1, L2C, L2P, L5 | ||
| GLONASS: L1, L2 | ||
| GALILEO: E1, E5a, E5b | ||
| SBAS | ||
| Performance Specification | Time to First Fix | Cold Start <50s, Warm Start <45s |
| Signal Re-acquisition | <3s | |
| RTK Initiation Time | <15s | |
| RTK Initiation Reliability | >99.9% | |
| Positioning Precision | Single Point Positioning | Single: H≤3m, V≤5m (1σ, PDOP≤4) |
| RTD Surveying | H : ±0.5m, V: ±1.0m | |
| Static Surveying | H : ± (2.5mm+1ppm x D), V : ± (5mm+1ppm x D) | |
| Real-time Kinematic Surveying | H : ± (10mm+1ppm x D), V : ± (20mm+1ppm x D) | |
| Communication | Interfaces | - Serial Port (6-Pin) |
| - Micro SIM | ||
| - USB Type C (OTG) | ||
| - TF Card | ||
| Network | 2G 900/1800 | |
| 3G 2100/900 CDMA BC0 TDSCDMA A/F | ||
| 4G LTE band1/3/7/38/39/40/41 | ||
| Bluetooth | Bluetooth 4.0 | |
| WLAN | Dual-Band Single Stream 802.11 a/b/g/n RF for Data Link | |
| Microphone / Speaker | Available | |
| Others | Display | TFT LCD Screen, Graphics, 720*1280 |
| Battery | Lithium-Ion, 7.4V ; Operating 8-10 Hours | |
| Dimension | 200mm*170mm*350mm, 5.7kgs | |
| Protection | IP55 | |
| Temperature Range (Operation) | -20°C--+50°C | |
