Analytical Performance

Designed to return lab quality results, the Niton XL5’s low limits of detection allow operators to scan a broad range of materials for diverse applications. Identify pure metals and alloys, obtain geochemical data, screen for heavy metals or determine plating and coating thickness. From metals to mining, and everything in between, the Niton XL5 is ready to work.

Rapid Results

Powered by a 5W x-ray tube, the Niton XL5 generates fast and accurate results. A dynamic current adjustment ensures optimum sensitivity for each measurement. Results are displayed in real time, enabling you to make faster decisions.

Size and Weight

Make light work of heavy industrial tasks utilizing the Niton XL5. Weighing an industry leading 2.8 pounds (1.3 kilograms), the Niton XL5 is the lightest handheld XRF Analyzer available for elemental determination and alloy identification.1 It’s small footprint and featherweight design reduce operator fatigue while increasing productivity.

Design

Tight spots are no match for the Niton XL5. Discover expanded field use with improved compact geometry and ergonomics. Reaching tight welds, corners and joints, are no longer defined as awkward test spots for the Niton XL5.

Functionality

Vivid new icons and an application interface ease navigation and configuration. Utilize swipe and touchscreen functionality, even with a gloved hand. Optional directional keys provide added usability. A micro and macro camera enable precise sample positioning and collect images for better record keeping. WiFi accessibility also automatically transmits data from your device to PC.

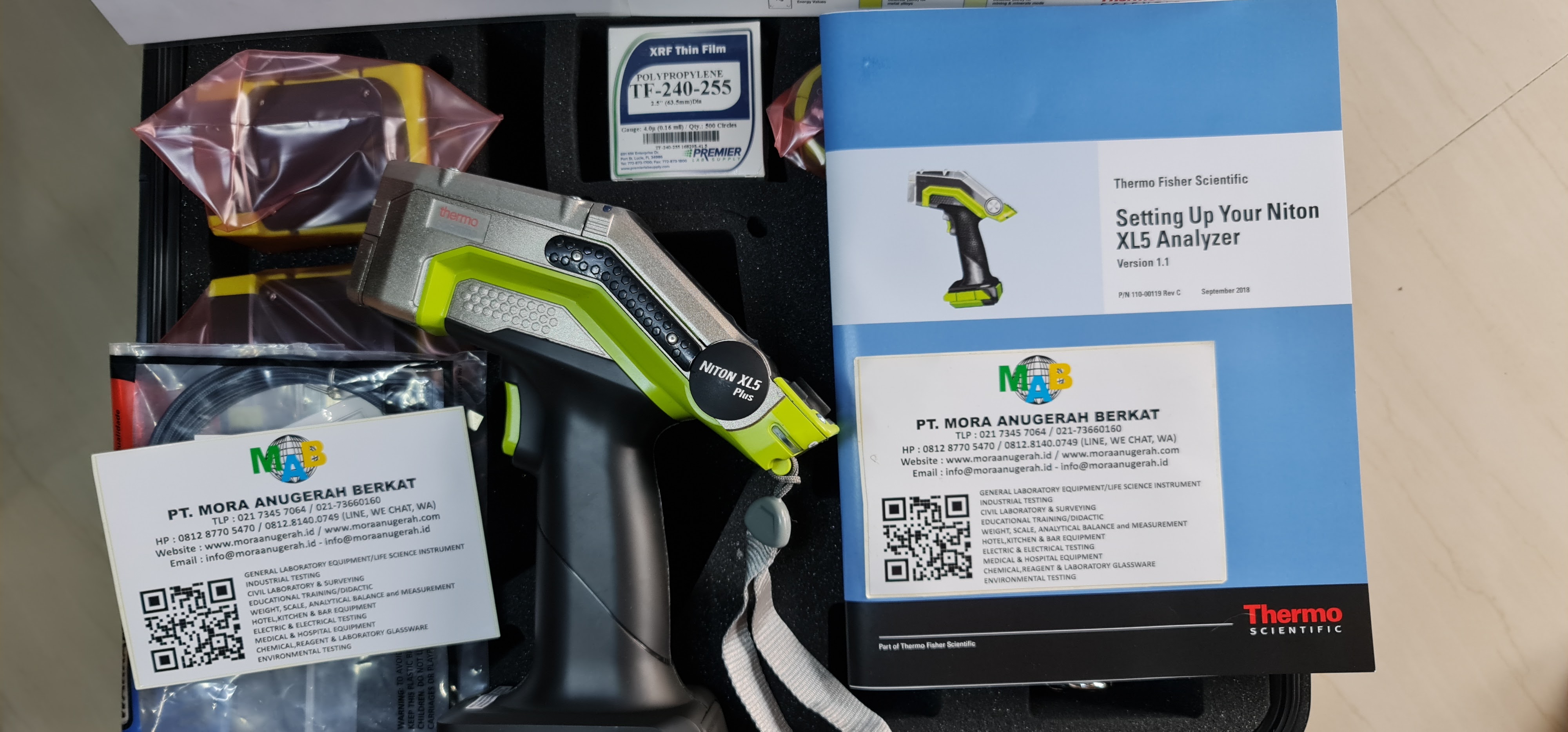

Thermo Scientific Nitton XL5 XRF Analyzers

Product Specifications

Weight

2.8 lbs with battery (1.3 kg)

Dimensions

9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.9 mm)

X-Ray

Source

X-Ray Tube : Ag anode (6-50kV, 0-500uA, 5W max)

Dynamically adjustable current for optimal sensitivity on every analysis

Detector

Proprietary large area drift detector

Spot Size

Standard : 8mm collimation Optional  : 3mm small-spot collimation

Analytical Range

Mg-U (ultra low light element detection)

Calibration Modes

General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys,Plastics, Industrial Lead in Paint, Spectral Fingerprint, TestAll™

Libraries

Default alloy libraries based on SAE, AISI, ASTM, AA,DIN, GB standards Users may create, clone and edit libraries

System Check

Built-in standardization via automatic system check

IP Rating

IP54 (splash and dust proof)

Operating

Environment

Temperature : 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C) Humidity : 10% to 90% relative humidity non-condensing

Display

Tilting, color, resistive touchscreen display

Power

12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply

Macro Camera

Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations

Micro Camera

Integrated CCD micro camera for locating and recording measurement positions

Global Positioning System

Internal GPS and optional external GPS (via Bluetooth) GPS data included with sample information

Bluetooth

Supports print functionality, external GPS connectivity and barcode reader

Memory/ Data Storage

512 MB internal system memory / 16 GB industrial grade storage Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)

Data Entry

• Touchscreen keyboard

• User customizable data entry

• Optional wireless remote barcode reader

Data Transfer

WiFi, USB

Operating System

Linux

Support Software

NitonConnect PC software

Security

Password-protected user security

Languages

English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean,French, Turkish, Italian

Standard

Accessories

Locking shielded carrying case Two (2) lithium-ion battery packs One (1) 110/220 VAC battery charger / AC adaptor Check samples Safety lanyard PC connection cable (USB)

Optional

Accessories

• Thermo Scientific™

• portable test stand Thermo Scientific™

• mini test stand Thermo Scientific™

• backscatter shield Thermo Scientific™

• hotwork stand off Thermo Scientific™

• soil guard Belt holster

Compliance

Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
