PT.Mora Anugerah Berkat (M.A.B) adalah perusahaan yang bergerak dalam bidang laboratorium khususnya material testing untuk konstruksi/pertambangan (civil laboratorium testing equipment), peralatan yang kami supply meliputi : alat lab uji tanah (soil test equipment),alat lab uji aggregates (aggregates test equipment),alat lab uji beton (concrete test equipment).alat lab uji sement (cement test equipment),alat lab uji aspal (asphalt test equipment),alat NDT (Non Destructive Test Equipment) dan Alat Survey.

For the determination of the fineness of Portland cement it is possible to choose between three models with increasing degree of automation according to the needs of the user: manual permeabilimeter, digital permeabilimeter, automatic permeabilimeter.

• Blaine Air Permeability Apparatus - E009 KIT

• Electronic Blaine Air Permeability Apparatus, Semi Automatic - E011

• Automatic Blaine Air Permeability Apparatus, PC Controlled - E011-01N

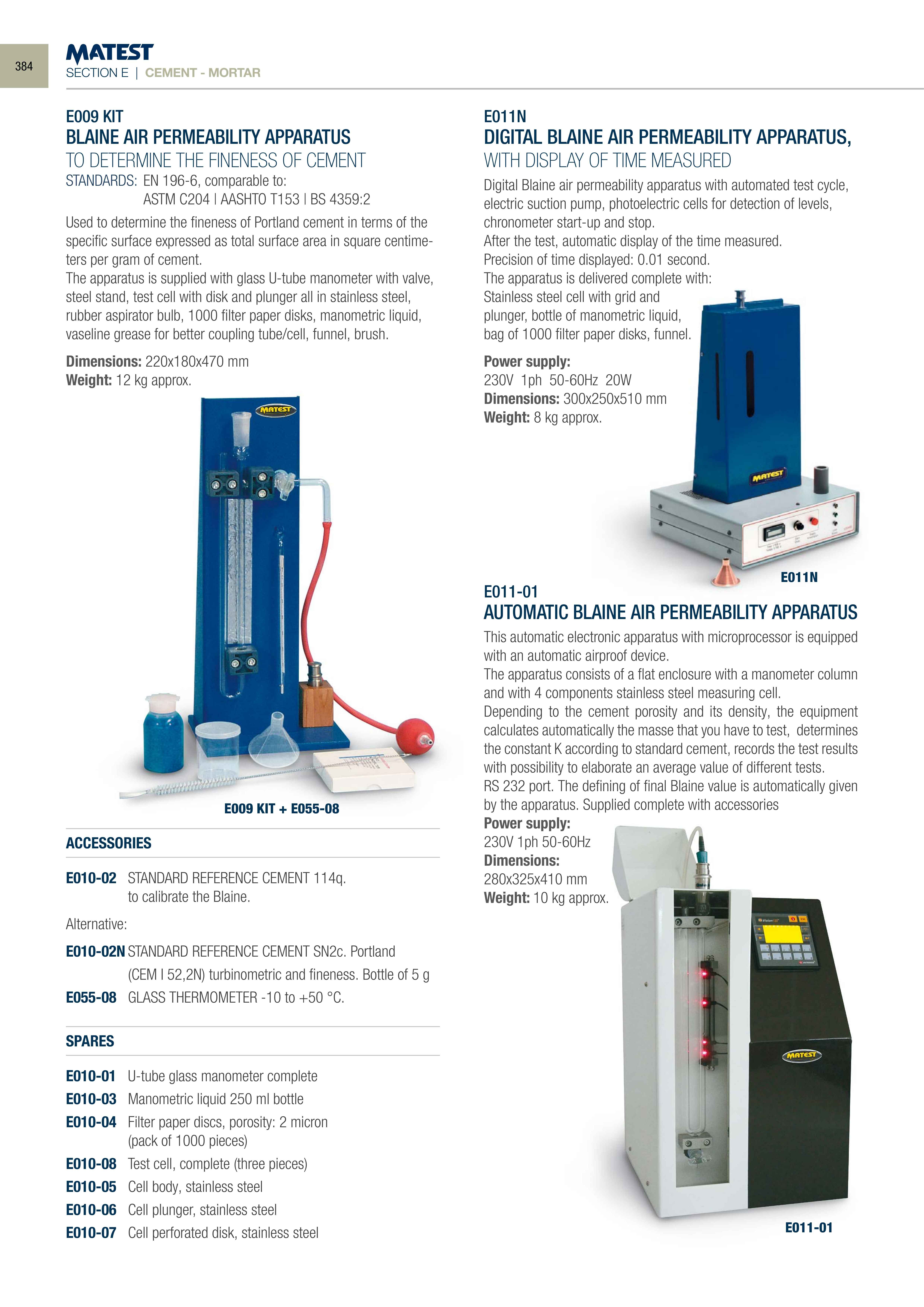

Code : E009 KIT

BLAINE AIR PERMEABILITY APPARATUS TO DETERMINE THE FINENESS OF CEMENT

Standard Method : EN 196-6, comparable to: ASTM C204 | AASHTO T153 | BS 4359:2

Used to determine the fineness of Portland cement in terms of the specific surface expressed as total surface area in square centimeters per gram of cement.

The apparatus is supplied with glass U-tube manometer with valve, steel stand, test cell with disk and plunger all in stainless steel, rubber aspirator bulb, 1000 filter paper disks, manometric liquid, vaseline grease for better coupling tube/cell, funnel, brush.

• Dimensions : 220 x 180 x 470 mm

• Weight : 12 kg approx.

ACCESSORIES

E010-02 STANDARD REFERENCE CEMENT 114q. to calibrate the Blaine.

Alternative:

E010-02N STANDARD REFERENCE CEMENT SN2c. Portland (CEM I 52,2N) turbinometric and fineness. Bottle of 5 g

E055-08 GLASS THERMOMETER -10 to +50 °C.

SPARES

• E010-01 U-tube glass manometer complete

• E010-03 Manometric liquid 250 ml bottle

• E010-04 Filter paper discs, porosity: 2 micron (pack of 1000 pieces)

• E010-08 Test cell, complete (three pieces)

• E010-05 Cell body, stainless steel

• E010-06 Cell plunger, stainless steel

• E010-07 Cell perforated disk, stainless steel

Untuk mengetahui lebih detail model/type dan spesifikasi dari Matest : BLAINE AIR PERMEABILITY APPARATUS silahkan click link/tautan yang ada di bawah ini : MATEST Blaine Air Permeability Apparatus Catalog

==============================================================================

Blaine Air Permeability Apparatus Pdf

==============================================================================

Code : E011N  DIGITAL BLAINE AIR PERMEABILITY APPARATUS, WITH DISPLAY OF TIME MEASURED

Digital Blaine air permeability apparatus with automated test cycle,electric suction pump, photoelectric cells for detection of levels,chronometer start-up and stop.

After the test, automatic display of the time measured.Precision of time displayed: 0.01 second.

The apparatus is delivered complete with: Stainless steel cell with grid and plunger, bottle of manometric liquid, bag of 1000 filter paper disks, funnel.

• Power Supply : 230V 1ph 50-60Hz 20W

• Dimensions : 300 x 250 x 510 mm

• Weight : 8 kg approx.

Untuk mengetahui lebih detail model/type dan spesifikasi dari MATEST : DIGITAL BLAINE AIR PERMEABILITY APPARATUS silahkan click link/tautan yang ada di bawah ini : MATEST Digital Blaine Air Permeability Apparatus Catalog

==============================================================================

Blaine Air Permeability Apparatus Pdf

==============================================================================

Code : E011-01  AUTOMATIC BLAINE AIR PERMEABILITY APPARATUS

This automatic electronic apparatus with microprocessor is equipped with an automatic airproof device.

The apparatus consists of a flat enclosure with a manometer column and with 4 components stainless steel measuring cell.

Depending to the cement porosity and its density, the equipment calculates automatically the masse that you have to test, determines the constant K according to standard cement, records the test results with possibility to elaborate an average value of different tests.

RS 232 port. The defining of final Blaine value is automatically given by the apparatus.

Supplied complete with accessories

• Power Supply : 230V 1ph 50-60Hz

• Dimensions : 280 x 325 x 410 mm

• Weight : 10 kg approx.

Untuk mengetahui lebih detail model/type dan spesifikasi dari Matest : AUTOMATIC BLAINE AIR PERMEABILITY APPARATUS silahkan click link/tautan yang ada di bawah ini : MATEST Automatic Blaine Air Permeability Apparatus Catalog
