BIOSAFETY CABINET CLASS III

/ BLOG / By

Specification

Specification Biological Safety Cabinet Class III

Type

Class III

HEPA Filter

ULPA Filter 2

ULPA Filter

Air Supply Filter: Efficiency 99.999% at 0.12 µm, First exhaust filter: Efficiency 99.999% at 0.12 µm, Second Exhaust Filter: Efficiency 99.999% at 0.12 µm

Airflow Volume

440-870 cfm

Pressure

≥ negative 120 Pa

Pre-Filter

Polyester fiber, Washable

LED Lamp

28Wx2

UV Lamp

30Wx3, 8Wx1

Illumination

≥1000 lux

Inner Dimension (WxDxH)

1240 x 650 x 650 mm

Overall Dimension (WxDxH)

1765 x 855 x 2100 mm

Pass Box Size (WxDxH)

Internal Size: 400 x 390 x 340 mm

External Size: 480 x 400 x 400 mm

Package Size

1850 x 1080 x 2280 mm

Front Window

8 mm Toughened glass, Anti-UV

Chamber Material

Epoxy coated cold-rolled steel

Noise Level

NSF 49≤61 dB / EN 12469≤48 dB

Weight

395 kg

Power

700 W

Power Supply

110V~240V/50Hz~60Hz



Accessories

Accessory Code Name

BX-103986

Fluorescent Lamp

BX-103996

Pressure Meter

BX-103997

Gloves

BX-103989

Remote Control

BX-103991

Drain Valve

BX-103998

UV Lampx4



Optional Accessories

Accessory Code Name External Dimension Package Size (mm)

BX-102683

Infrared Sterilizer

150 x 95 x 210 mm

BX-102684

Airflow Tester

BX-102685

Formalin Fumigation Sterilizer

300 x 200 x 160 mm

BX-102686

Ammonium Hydrogen Carbonate Neutralizer

300 x 200 x 160 mm

BX-102687

Armrest

BX-102688

Laboratory Chair

BX-102689

Dust Particle Counter

BX-102690

Digital Sound Level Meter

BX-102691

Illumination Meter

BX-102692

Air Flow Anemometer

BX-102693

Protective Garment

BX-102694

Protective Gloves



Biolab Biological Safety Cabinet Class III Series is designed to work with level 4 pathogens. These safety cabinets feature a physical barrier between the user and product. It involves a gas tight chamber with negative pressure and attached pair of gloves for operation to avoid direct contact with hazardous contaminants. Robust design with advanced protection, it has a user friendly interface and energy efficiency.

Biolab Biological Safety Cabinet Class III Series 500 is designed to work with level 4 pathogens, these safety cabinets feature a physical barrier between the user and product. It involves a gas tight chamber with negative pressure and attached pair of gloves for operation to avoid direct contact with hazardous contaminants. Robust design with advanced protection, it has a user friendly interface and energy efficiency.

  • Stainless Steel 304 table for operation

  • Digital LCD display for easy monitoring of all parameters

  • Emission of 253.7 nm for highly efficient decontamination

  • Two-layered marinated toughened glass (≥5mm) motorized front window

Features

  • Stainless Steel 304 table for operation

  • Digital LCD display for easy monitoring of all parameters

  • Emission of 253.7 nm for highly efficient decontamination

  • Two-layered marinated toughened glass (≥5mm) motorized front window

  • Motored front window with timer function

  • Front window is completely sealed with≥ 8 thickness

  • Remote control operation including front sash movement and fan speed control

  • Foot switch to adjust the height of the front window

  • Low noise and high energy efficiency for operational cost savings

  • Audio and visual alarm for filter replacement, front window over height and abnormal airflow

Applications

Biolab Biological Safety Cabinet Class III Series 500 is an ideal choice for laboratory/ research work involving use of toxic chemicals, potential carcinogens and hazardous contaminants.

Untuk mengetahui produk lebih lengkap berkaitan dengan model/type dan spesifikasi silahkan click link/tautan
yang ada di bawah ini :

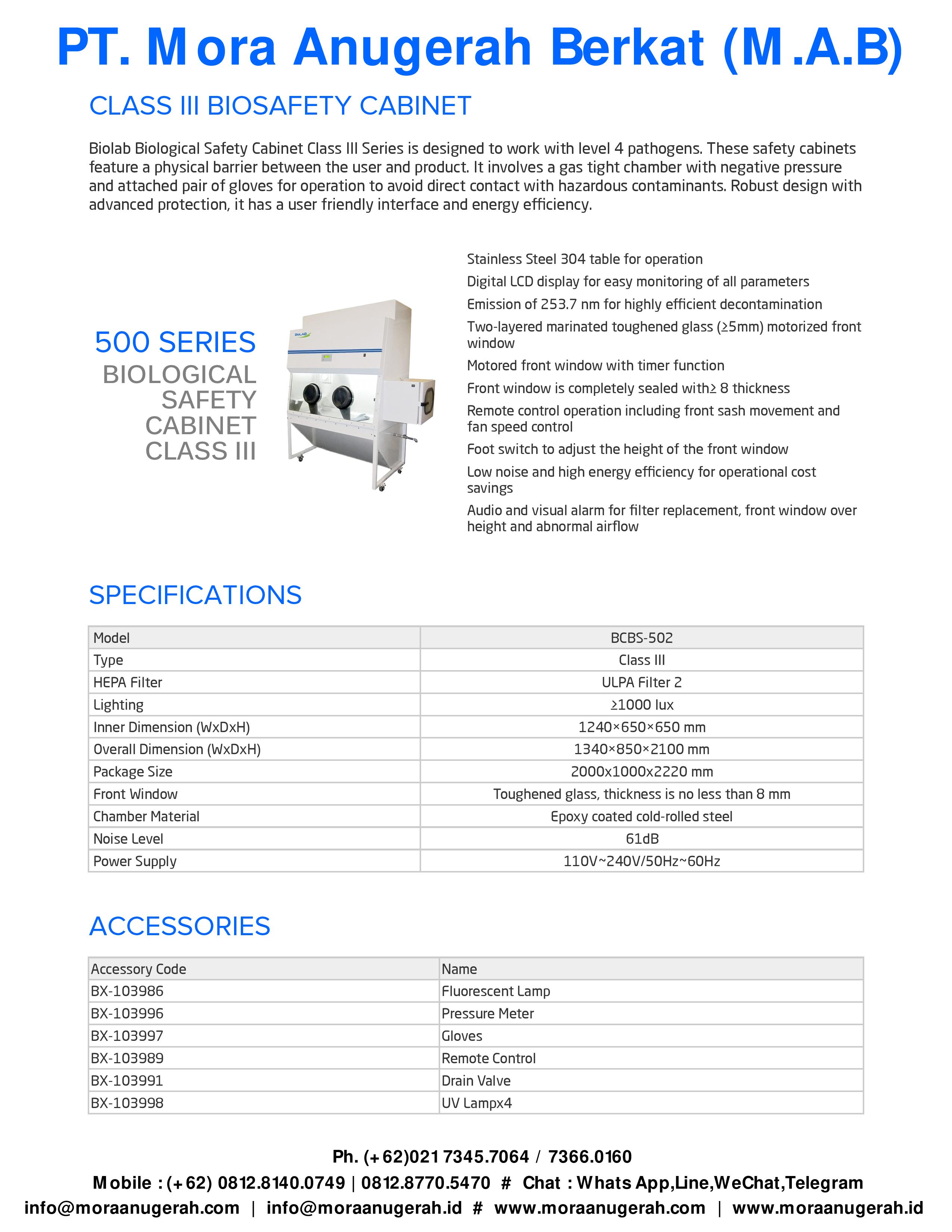

Biosafety Cabinet Class III Catalogue
